Guide- D Series Thermal Imaging Infrared Camera
Guide- D Series Thermal Imaging Infrared Camera
Guide- D Series Thermal Imaging Infrared Camera

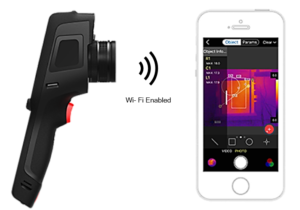

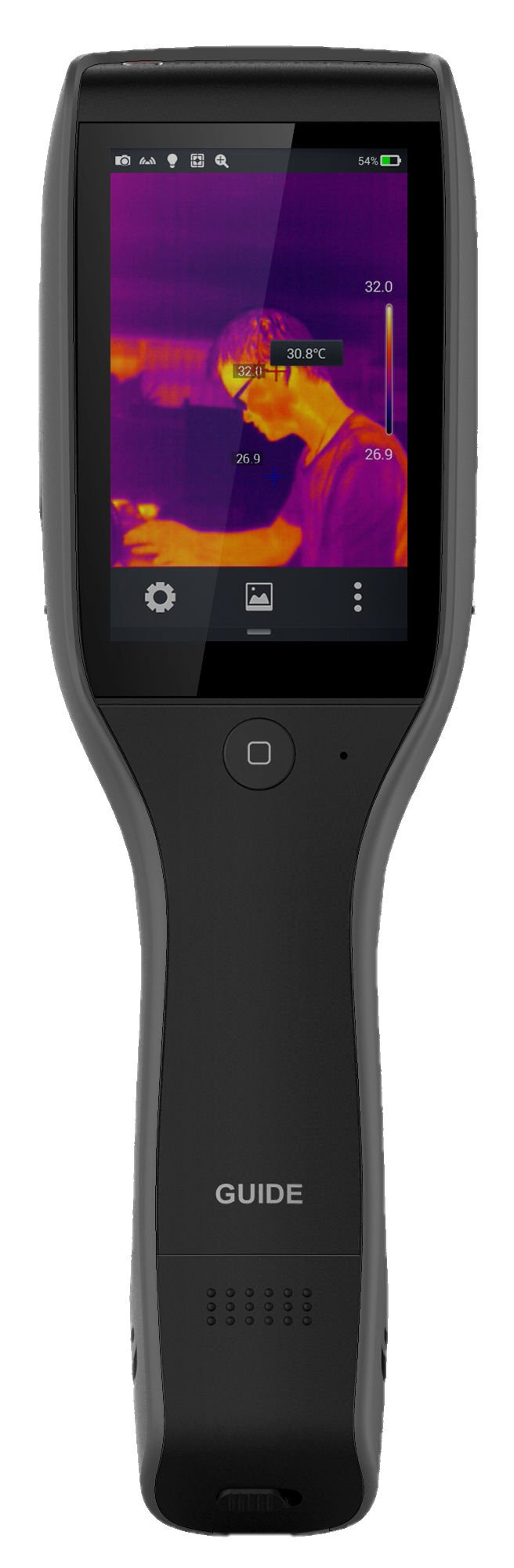

Guide D Series Thermal Imaging Infrared Camera - WiFi Enabled
Guide- D Series Thermal Imaging Infrared Camera
Guide- D Series Thermal Imaging Infrared Camera

Features

  • Lightweight; Ergonomic design for long holding times
  • Easy step-by-step operation
  • Android based OS with open platform for APP developments
  • 2m Drop test certificate
  • Powerful on-board analysis and reporting capabilities
  • Min. & Max. temperature alarms

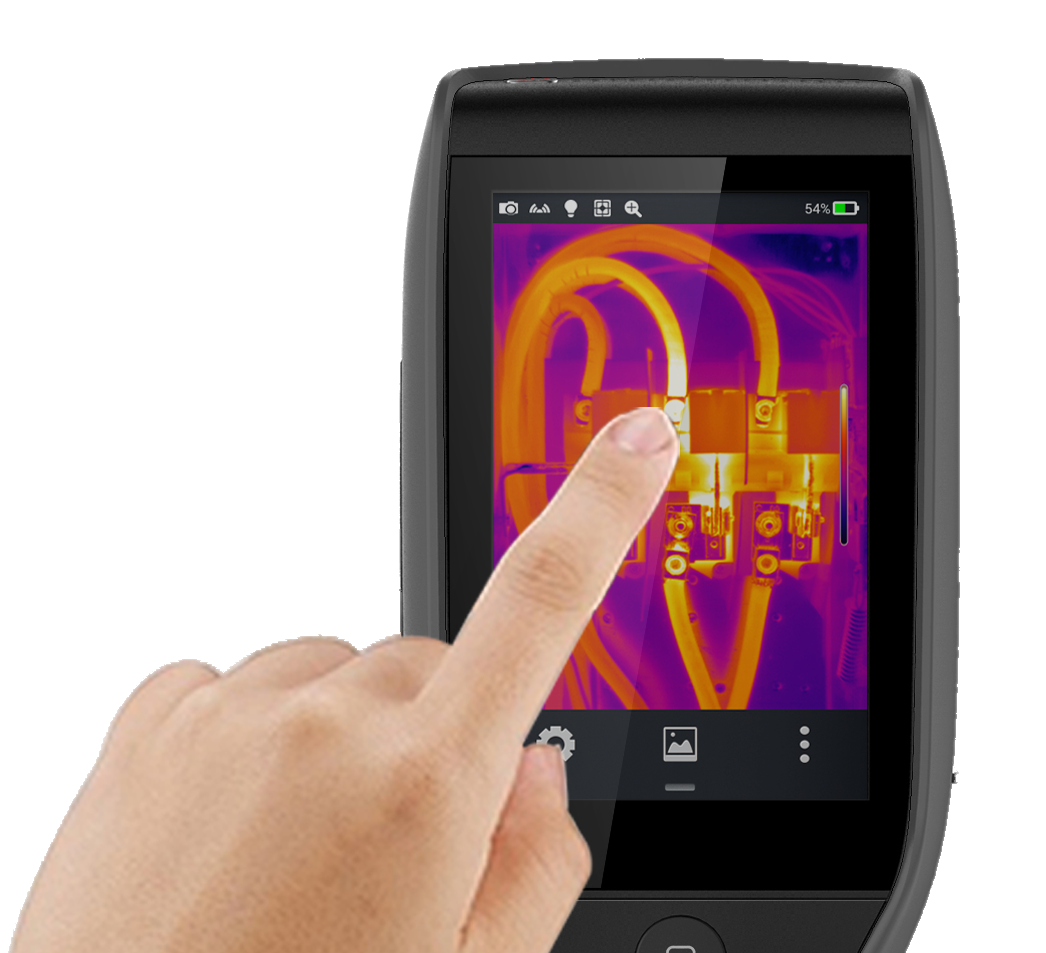

  • 4″ high light touch screen
  • Adjustable brightness ; easy view under sunlight conditions
  • 800×480 resolution

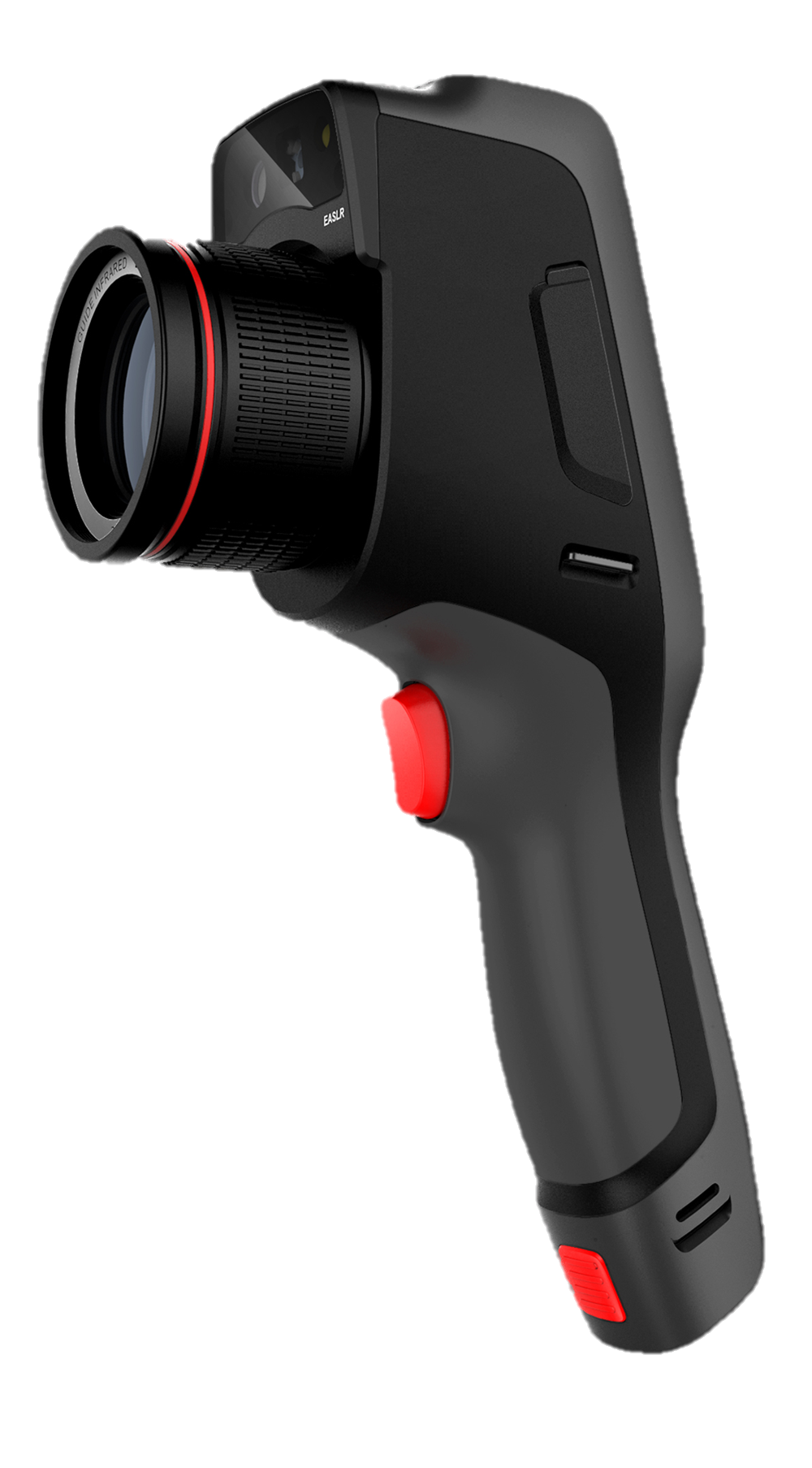

  • Buckle type lens : tele lens, wide lens, high temperature lens that can be changed to suit your applications
  • Four (4) image types (IR, Visible, MIF, PIP)
  • Illuminator allows for visible images in low lighting
  • Removable SD card; up to 32G

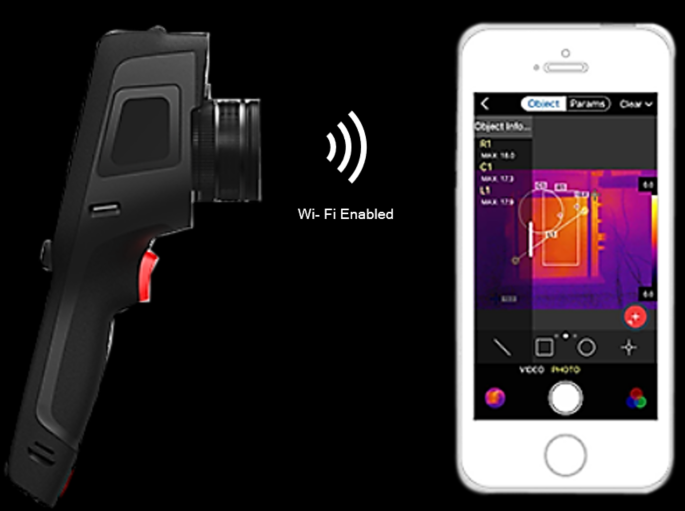

  • Wi-Fi communication for easy transfer/sharing of images and videos
  • Print on-board reports via Wi-Fi enabled printer
  • Connect with mobile terminal to take IR photo ; achieve multi-screen control
  • Rechargeable Li-ion battery
  • >4 hours working time

Specifications & Model Variations

SpecificationModel
D192MD384MD384A
IR Resolution192×144384×288
Focal Length7mm19mm15mm
Digital Zoom1.1 - 4X
Temperature Detection Range-20°C - 150°C, 100°C - 650°C
(Optional : 650°C - 1500°C)
-20°C - 150 °C, 100°C - 650°C
Accuracy±2°C / ±2%
Colour Palettes8
Image ModeIR/Visual/Picture in Picture/MIF
Display4" LED Screen, 800×480 pixels, Touch Screen
Data StorageJPEG with temperature information onto SD card
FocusManualAuto
PowerRecharegeable Li-Ion Battery ( 4 hours operational time)
InterfaceMiro USB 2.0, Micro HDMI, Power (12V), TF card (Standard 16G, up to 32G), Wi-Fi/Laser
Drop Test2m Drop Test Certificate
Weight840g840g735g
Dimensions274×106×78mm274×110×78mm274×91×78mm
