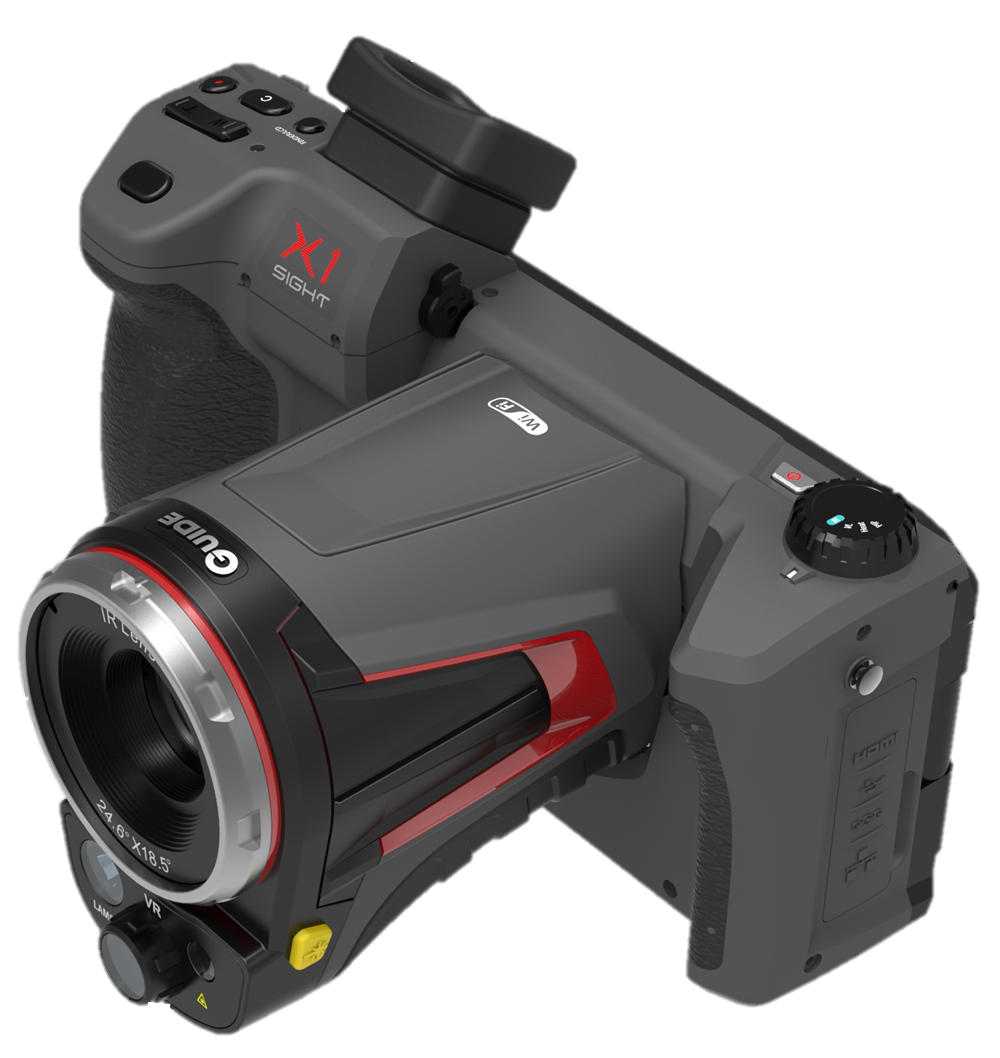

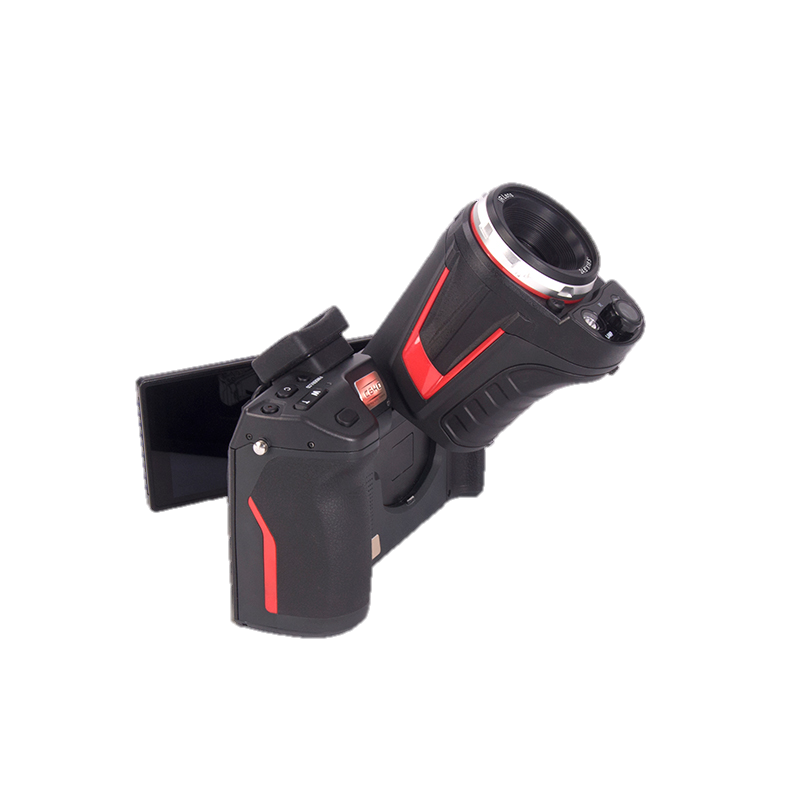

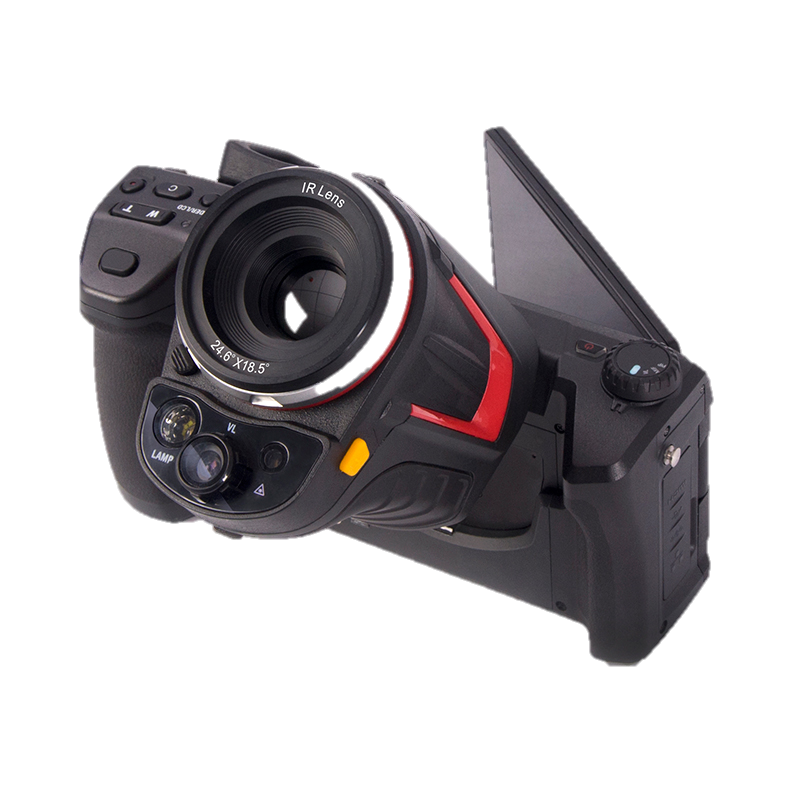

Guide C-Series Thermal Imaging Infrared Camera - Wi-Fi EnabledGuide- C Series Thermal Imaging Infrared Camera
Guide- C Series Thermal Imaging Infrared Camera
Guide- C Series Thermal Imaging Infrared Camera

Features

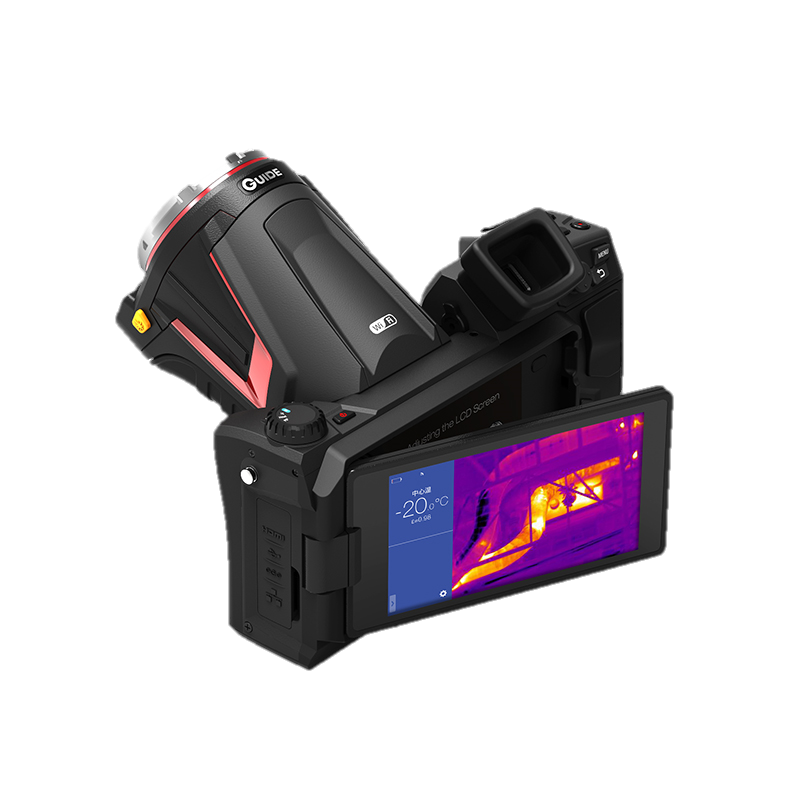

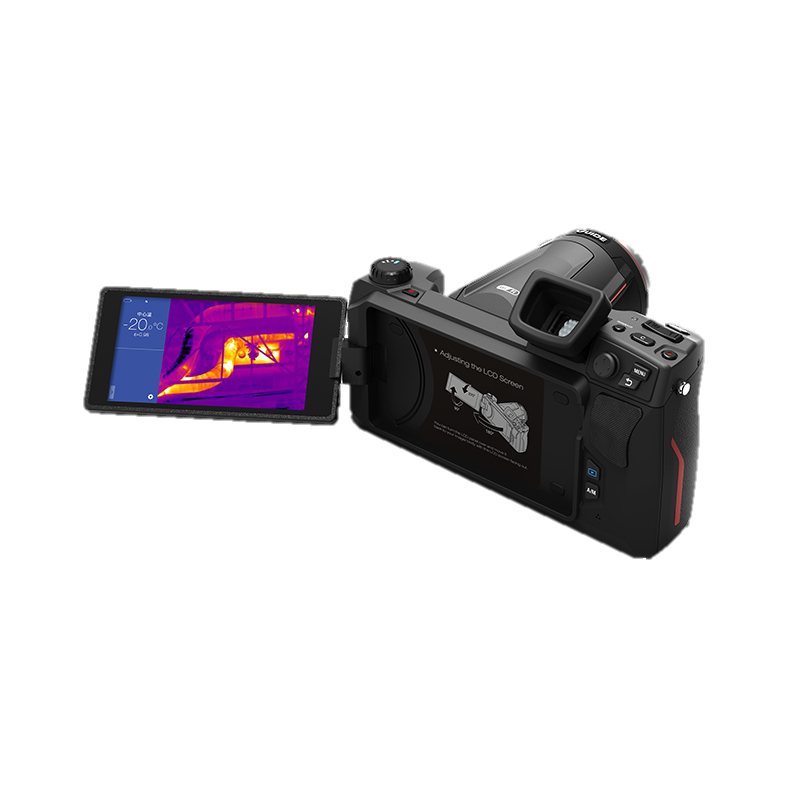

  • Rotating display for easy viewing angle
  • Ergonomic design for long holding times
  • Android based OS with open platform for APP developments
  • Powerful on-board analysis and reporting capabilities
  • High resolution IR & Visual Imaging
  • 640 x 480/ 384 x 288 IR FPA detector

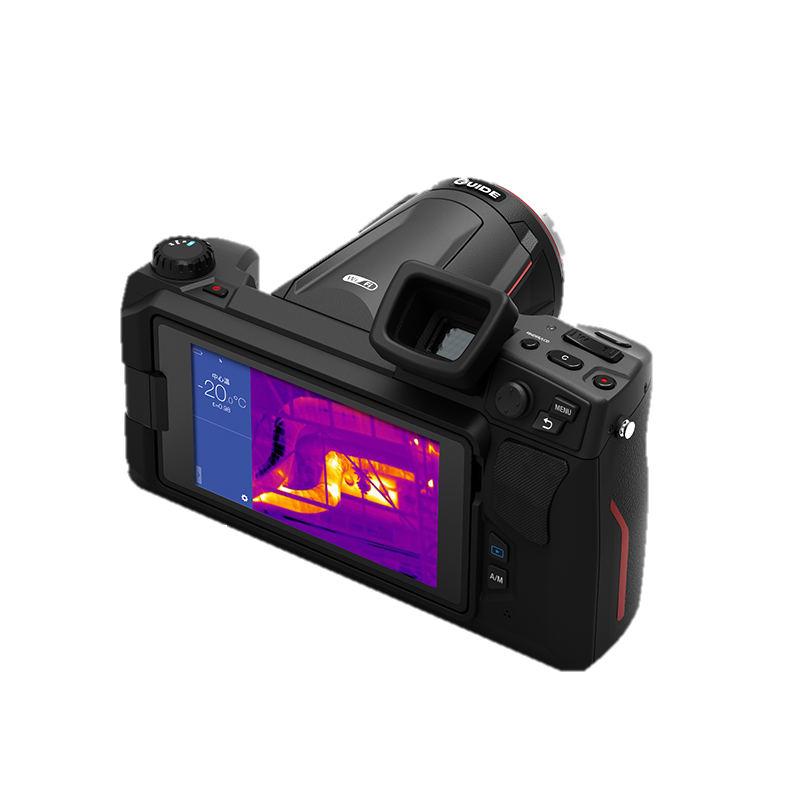

  • 5″ LCD touch-screen display
  • 5MP camera & lamp which allows capturing of visual images in any lighting conditions
  • Laser
  • Microphone (volume adjustable)
  • Speaker (Volume adjustable)
  • Digital Compass
  • GPS
  • Light Sensor
  • Multiple optional lens

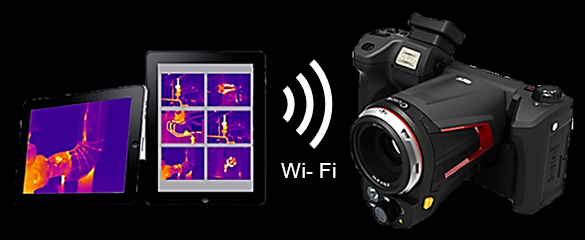

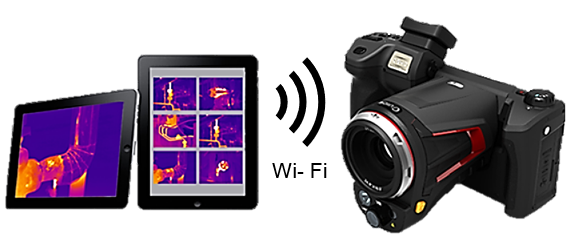

  • Wi-Fi communication for transfer of images and videos
  • Camera can be remotely controlled via remote mobile devices (Wi-Fi enabled)
  • Print on-board reports via Wi-Fi enabled printer
  • Bluetooth (only on C640 Pro)
  • Rechargeable Li-ion battery
  • >4 hours working time

Specifications & Model Variations

SpecificationModel
C400C640C640 Pro
IR Resolution384x288640x48060x480
Digital Zoom1.1 - 4X1.1 - 10X
Accuracy±2˚C / ±2%±1˚C / ±1%
Focal LengthStandard 25mm (Optional: 13mm, 55mm)
Colour Palettes8
Temperature Detection RangeFilter 1: -20˚C - 150˚C
Filter 2: 150˚C - 800˚C
(Optional : 2000˚ C)
Image ModeIR/Visual/Picture in Picture/MIF
Display5" LCD Screen, 1280×720pixels, Touch Screen
Data StorageJPEG with temperature information onto SD card
FocusMotor Drive/Auto
PowerRecharegeable Li-Ion Battery ( 4 hours operational time)
InterfaceMicro USB 2.0, SD Card, Gigabit Ethernet, Tripod, Mini HDMI
Sketch on ImageYes
Weight/Dimensions1.15Kg (Battery excluded)/ 140×206×144mm
