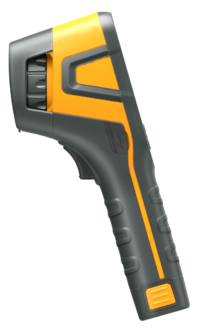

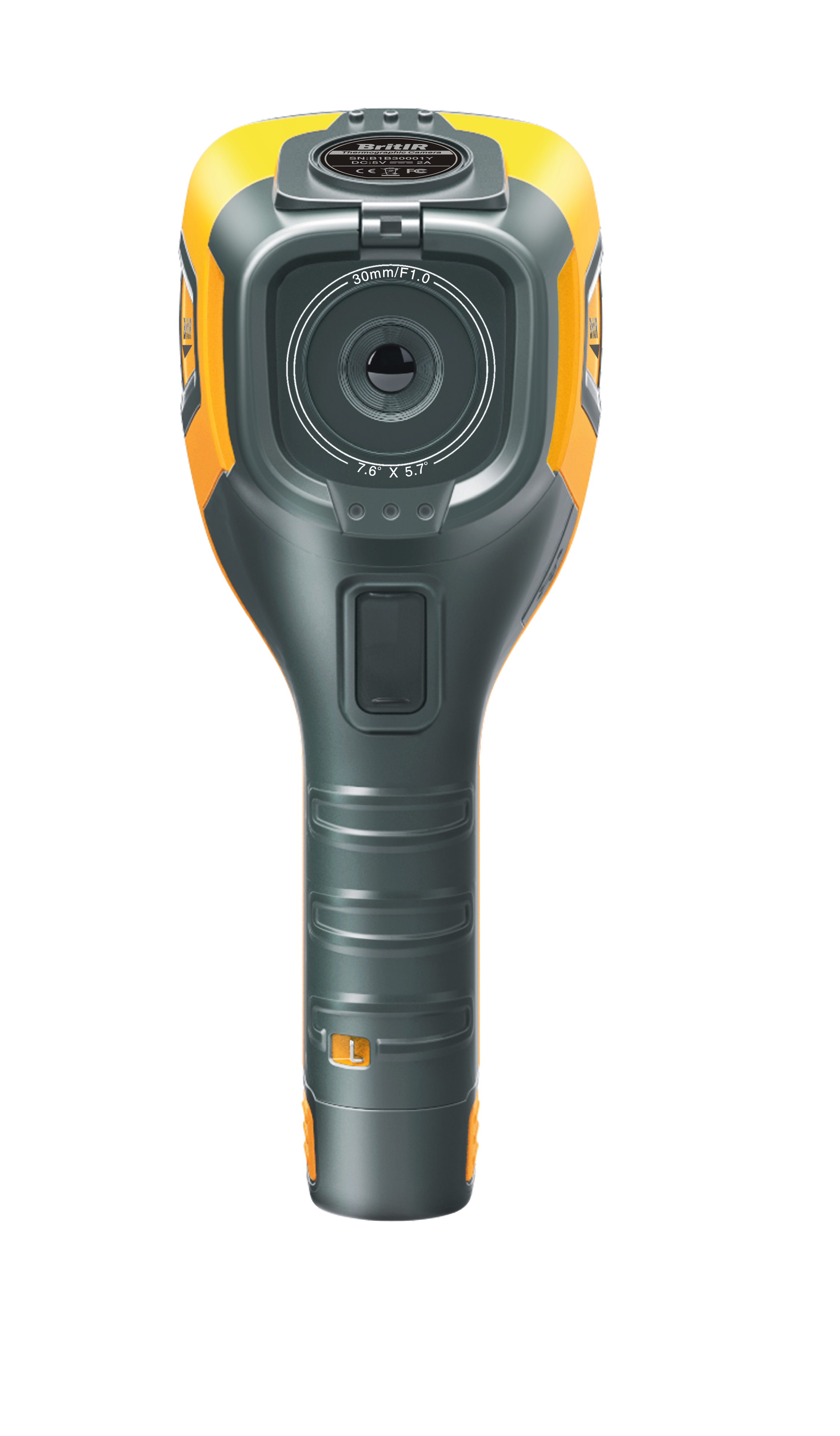

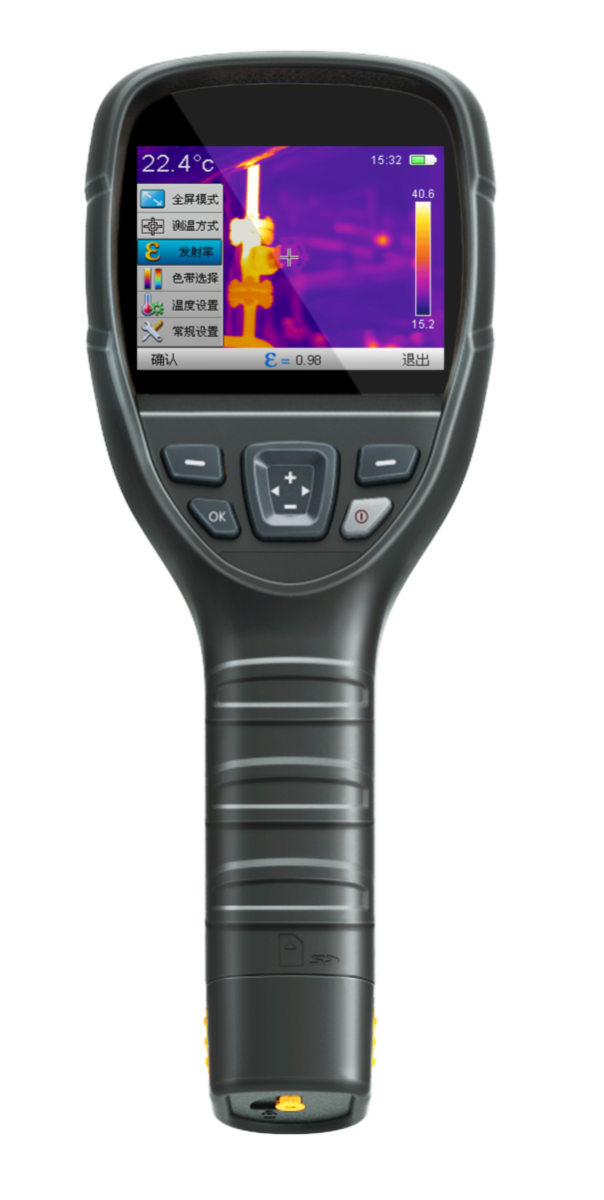

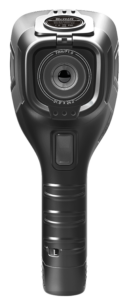

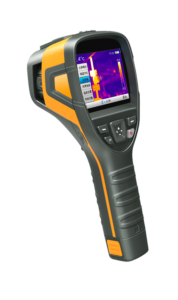

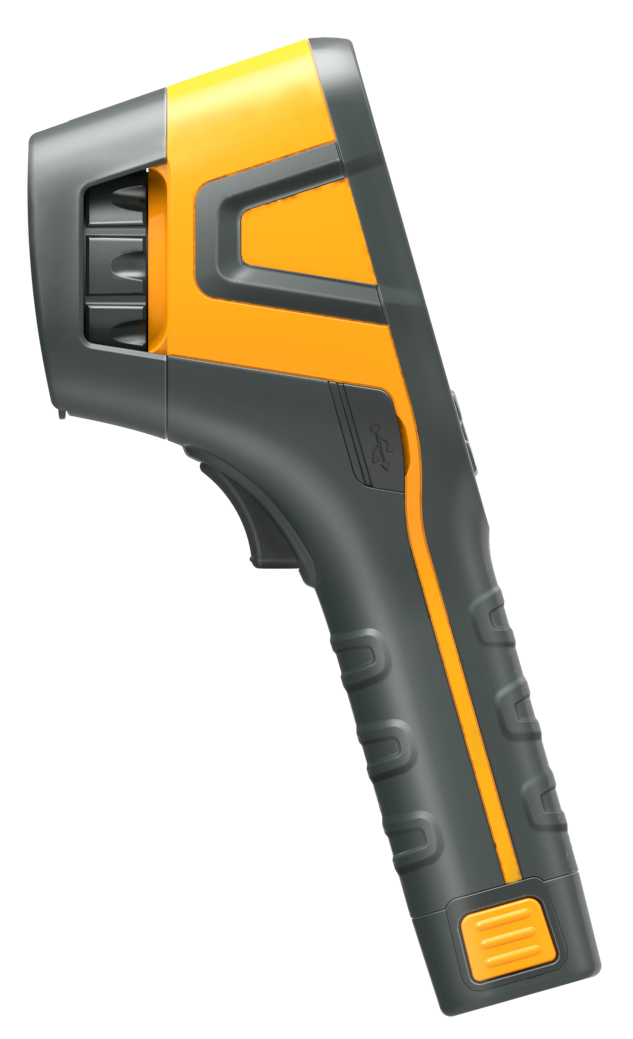

Guide- B Series Thermal Imaging Infrared Camera
Guide- B Series Thermal Imaging Infrared Camera
Guide- B Series Thermal Imaging Infrared Camera
Guide- B Series Thermal Imaging Infrared Camera

Features

  • User friendly, single hand operation
  • Easy to use for monitoring and analysing electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment
  • 3.5″ large screen display; no image cropping
  • No detailed information lost with high brightness screen
  • Rugged and compact design
  • Metal internal structure
  • Standard micro USB interface for data transmission
  • Interface can also be used for charging
  • Removable Li-ion battery
  • Up to 4 hours working time
  • Multi-native charging model available (adapter/computer/car charger/dual battery charger)

Specifications & Model Variations

SpecificationModels
B0B160B320
IR Resolution80x80160x120320x240
Focal Length8mm11mm19mm
Pixel Size25µm
Colour Palettes6
Temperature Detection Range-20˚C - 350˚C
Accuracy±2˚C / ±2%
Display3.5" LCD Screen, 320x240 pixels
Data StorageJPEG with temperature information onto SD card
Environmental CertificationsCE, FCC, ROHS
Power3.7V Rechargeable Li-Ion Battery
Drop Test1 Meter
Weight/Dimensions700g (Battery included)/ 258x98x90mm
Download Brochure Here
